Astride Stander

Description

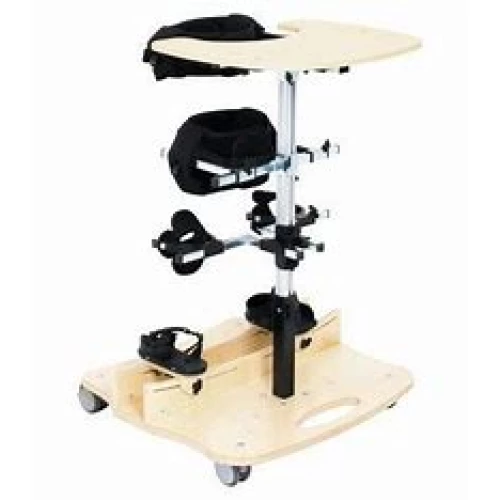

ASTRIDE™ is a modern static standing frame with an abduction function. Its improved and lighter version allows for a wide range of adjustments within the feet, knees, and torso area, enabling fully safe and proper positioning of the user’s body in a standing position.

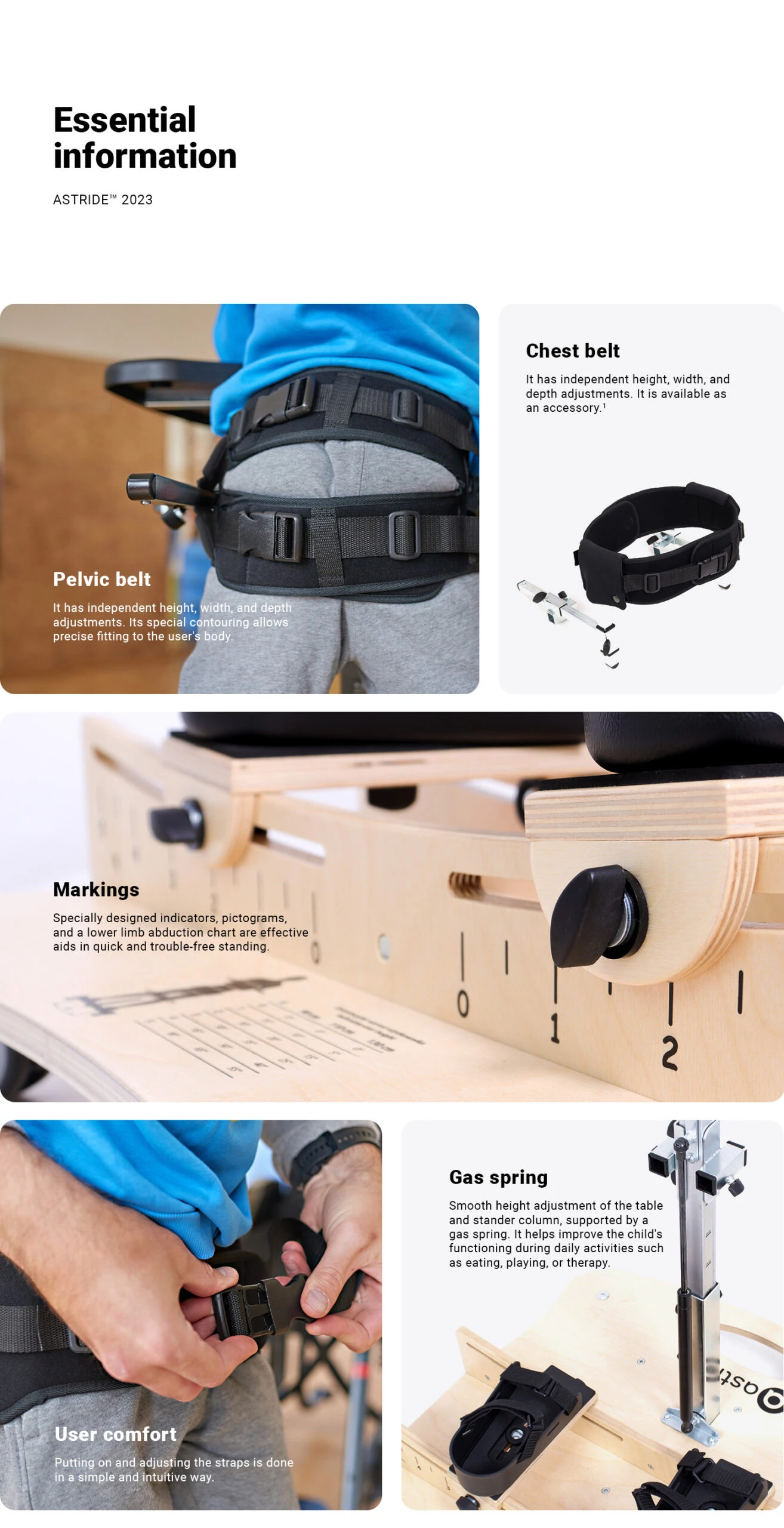

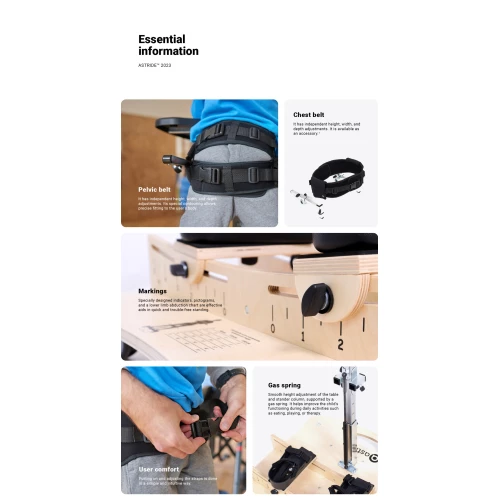

The new version of ASTRIDE™ features easy-to-fasten belts: chest and hip belts, with independent adjustments in all planes within the pelvic and torso area, providing complete control over hip positioning. This function is particularly helpful in cases of concurrent postural abnormalities.

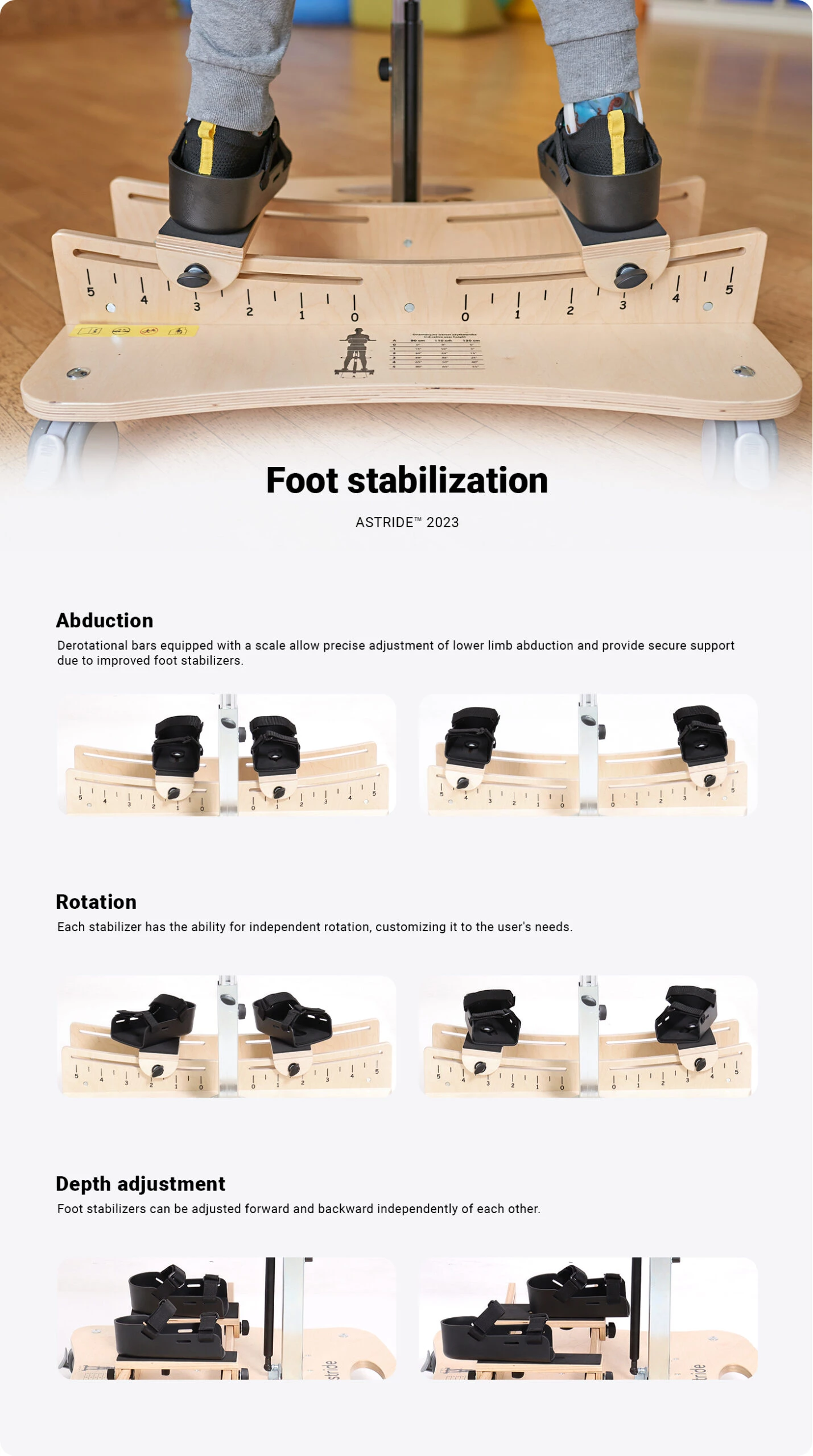

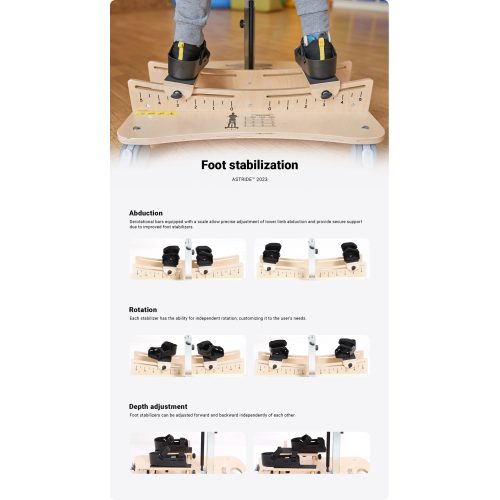

Individually tailored foot stabilizers and contoured footrests with lateral supports ensure a stable positioning of the lower limbs. Rotating kneepads within the knee joint area alleviate pressure on the patella, stabilizing and maintaining correct leg positioning during upright standing.

A stable base equipped whit wheels with independent brakes allows easy transfer of the standing frame between rooms. The smooth height adjustment of the standing frame and table, aided by a gas spring mechanism, facilitates therapy and everyday activities such as learning, playing, or having meals.

Sizes

Symbol Measurement Unit Size 1
W indicative user height* [cm] 90 – 130
A chest belt height (accessories) [cm] 68 – 98
B chest belt width (accessories) [cm] 16 – 32
chest belt parimeter (accessories) [cm] 54 – 92
C pelvic belt height [cm] 42 – 75
D pelvic belt width [cm] 16 – 34
pelvic belt parimeter [cm] 54 – 98
E knee support height [cm] 23 – 55
F knee supports width [cm] 15 – 44
H tray height [cm] 60 – 80
I footer width [cm] 8 (size S)
10 (size M)**
J footer spacing [cm] 12 – 63
K footer length [cm] 19 (size S)
23 (size M)**
max. user weight [kg] 50

Note: Measurement tolerance range is +/- 1 cm / ½ in.
* Height cannot be the main parameter while choosing the product size.
**The stander is equipped with feet in size S as standard. (It is possible to change to size M when placing an order).

WEIGHT AND DIMENSIONS

Symbol Measurement Size 1
X width [cm] 70
Y length [cm] 70
Z height [cm] 88 – 118
weight [kg] 19

Note: Measurement tolerance range is +/- 1 cm / ½ in.
Note: Approximate values, depending on the product configuration.

As a part of our permanent product improvement, AbilityHealth reserves the right to change design and specifications without notice. Further, not all options and features offered are compatible with all configurations. Please refer to the user instruction manual for more information.56781

Accessories

Safety

    • AST_176 Chest belt with mounting tubes

      AST_176 Chest belt with mounting tubes

This is a medical device. Use it in accordance with the user manual or the label.
